Parameters and Features
1. Two million high-definition image sensor, with an effective resolution of 1932 * 1088;

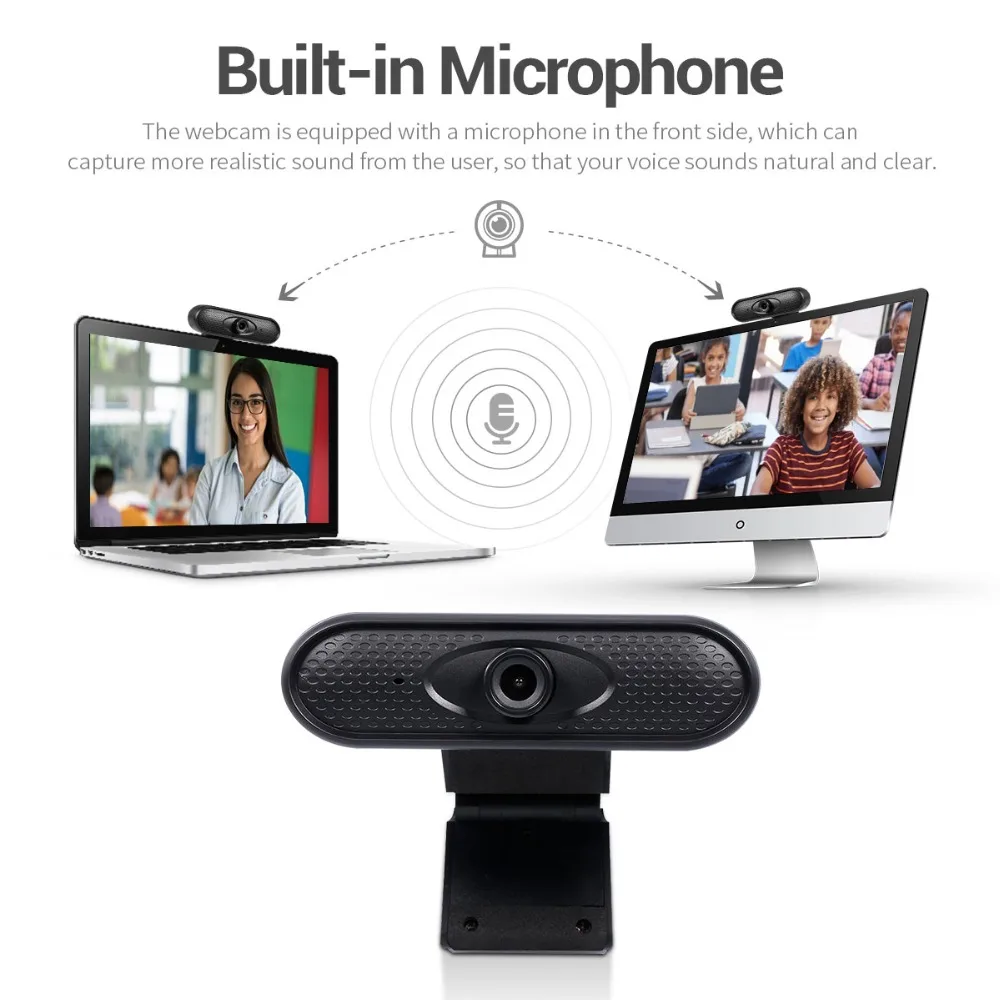

2. Audio acquisition is supported.
3. Standard UVC / UVA protocol, drive free, plug and play.
4. Support Windows / Android / Linux system.
5. H.264 and MJPEG image formats are supported,The maximum support is 2MP / 30fps image resolution.
6. It can be used for online teaching, live broadcast, video conference,Video chat, intelligent TV external devices.
Image sensor |
1/2.9 |
Lens |
3.6mm/75.7° |
Effective resolution |
1932(H) × 1088(V) |
Effective Pixels |
2.0 MegaPixels |
Signal to noise ratio |
> 50dB |
Video stream |
H.264:1920*1080/1920*720/640*360 MJPEG:1920*1080/1920*720/640*360 |
Video frame rate |
25FPS/30FPS |
Electronic shutter |
AUTO |
Protocol |
UVC/UVA |
Video output |
USB Video streaming |
Working voltage |
DC5V/160mA ±6mA |
Work environment |
-20℃ -- 60℃ |
Package Weight |
0.16kg |

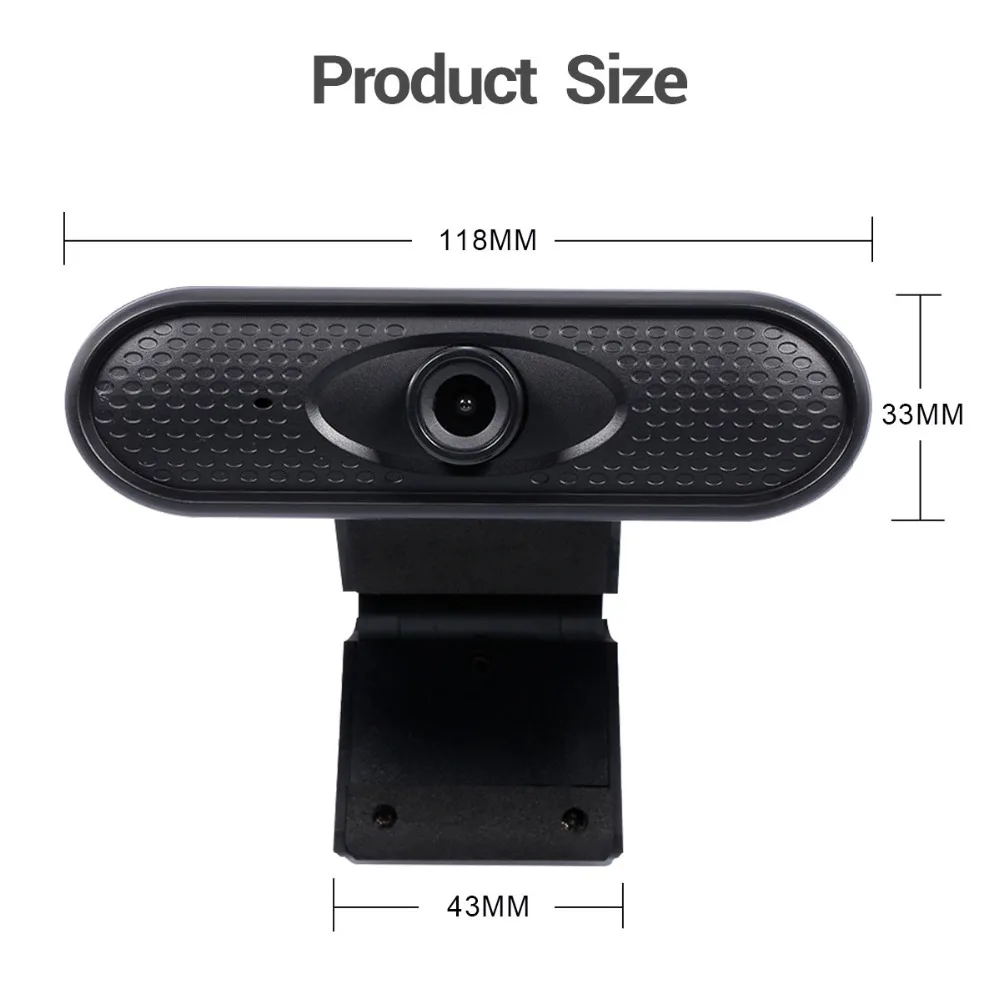

Package Dimensions |
135*67*76mm          |
